Aviation Testing Instruments
Our target is not the certification laboratory but the in-house laboratory of the supplier feeding the cabin: the lab that screens material before it goes to the specification test. Our catalogue covers abrasion, fastness, ageing, strength and conditioning today. The FAR / CS-25.853 Appendix F rigs are BUILT TO ORDER to the specimen holder, burner and cabinet geometry described in the standard — they are not catalogue stock items and lead time is quoted per project.
Instruments in our catalogue
25 instruments
Wyzenbeek Abrasion Tester (WY-4, 4 Stations)
Vertical Flame Spread Tester
UL94 / IEC 60695 Burn Tester
Limiting Oxygen Index (LOI) Tester
Martindale Abrasion & Pilling Tester
Light Fastness Tester (Xenon Arc)
Light Fastness Tester (8 Station / 24 Specimen)
UV Weathering / Ageing Tester
UV Test Box
Fabric Tensile Strength Tester
Universal Testing Machine (5 kN)
Elmendorf Tear Resistance Tester
Ball Bursting Strength Tester (K012B)
Air Permeability Tester
Crockmeter — Colour Fastness to Rubbing
Perspiration Fastness Tester
Washing Fastness Tester (Gyrowash)
Hexapod Tumble Tester (1 / 3 / 6 stations)

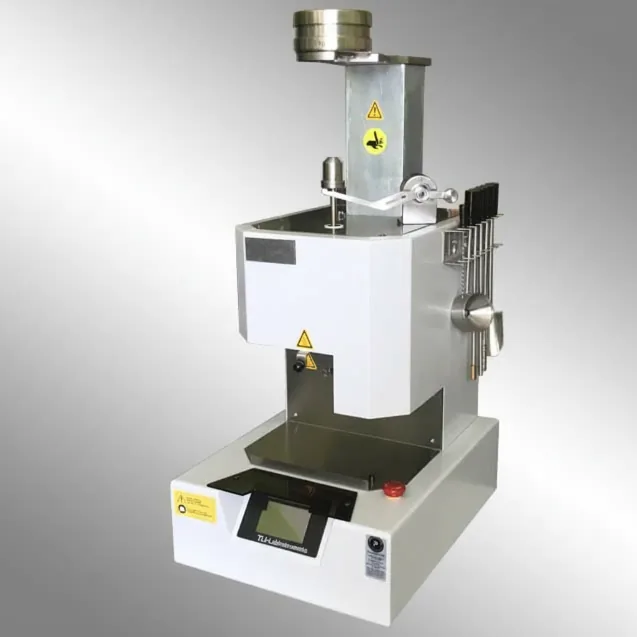

Melt Flow Index (MFI) Tester
Digital Fabric Thickness Gauge (Benchtop)
Fabric GSM Calculation Kit
Climatic Conditioning Chamber
Conditioning Cabinet
Laboratory Drying Oven
Light Assessment Cabinet (D65/TL84/UV/A)
Built to order
These rigs are not catalogue stock. They are manufactured to the specimen holder, burner/heat source and cabinet geometry described in the standard; lead time and price are quoted per project. The instrument is delivered with a calibration report — which is not a certificate of conformity.
- FAR / CS-25.853 Appendix F Part I — 12 s and 60 s vertical Bunsen rig; 45° and 60° configurations in the same cabinet
- FAR / CS-25.853 Appendix F Part II — 60° cable and wire insulation burn rig
- FAR / CS-25.853 Appendix F Part V — ASTM E662 smoke density chamber (optical smoke only)
- FAR / CS-25.853 Appendix F Part IV — OSU rate of heat release (65/65) rig: per project, long lead time
- FAR / CS-25.853 Appendix F Part III — seat cushion oil burner rig: per project
Not supplied
- Toxic gas analysis (Airbus ABD 0031, Boeing BSS 7239, FTP Part 2 toxicity) — the gas analyser / FTIR is not of our manufacture, not supplied
- Fuselage burnthrough (Appendix F Part VII) — not supplied
- Fire resistance furnaces (ISO 834, EN 1363) — not supplied
- Composite and metal coupon tensile (ASTM D3039, ISO 6892) — our universal tester goes up to 5 kN and is NOT sufficient for these tests
- Approval and accreditation: an instrument does not issue a certificate of conformity. FAA / EASA acceptance depends on the authority and on the laboratory's accreditation
Prices start from €18. Request a laboratory specification and quotation for this sector.
