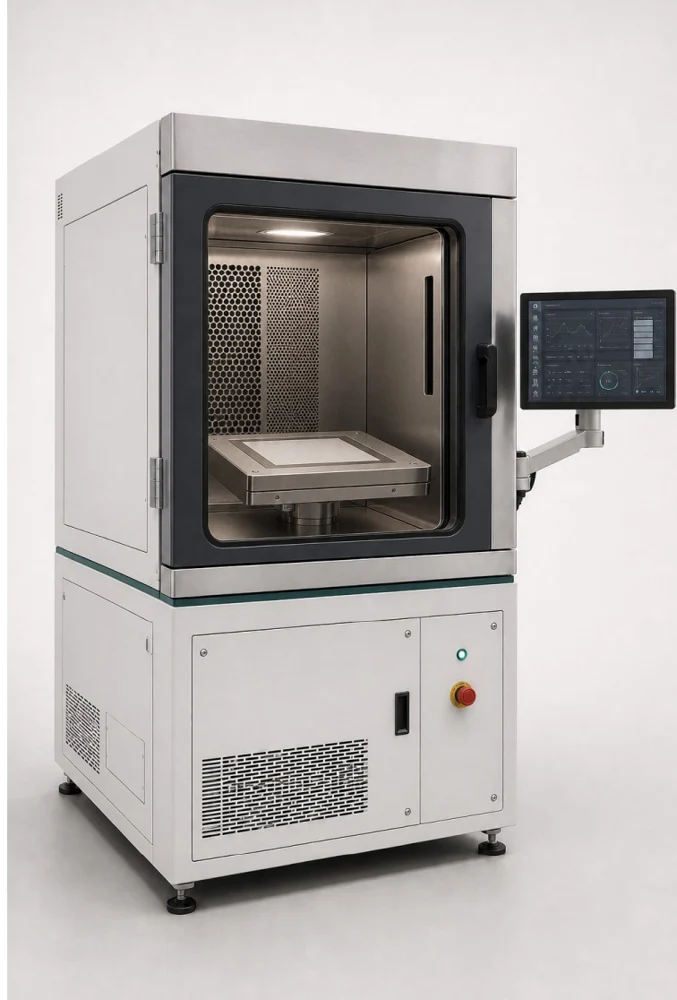

Thermal and Water-Vapour Resistance Tester – Sweating Guarded Hotplate (RET-01A)

Termal ve Su Buharı Direnci Test Cihazı – Terleyen Sıcak Plaka (RET-01A)

Measures thermal resistance (Rct) and water-vapour resistance (Ret) of textiles and textile-like flat materials by the ISO 11092 sweating guarded-hotplate method. 200 × 200 mm porous heated measuring plate, independent active guard and bottom thermal guard; integrated climate chamber (15–55 °C, 30–70% RH), horizontal airflow. Rct 0.002–2.000 m²·K/W, Ret 0–1000 m²·Pa/W; Windows-based software with automatic steady-state detection.

Technical specifications

• Method: ISO 11092 sweating guarded-hotplate.
• Measured quantities: Rct thermal resistance; Ret water-vapour resistance.
• Rct range: 0.002–2.000 m²·K/W; Ret range: 0–1000 m²·Pa/W.
• Measuring area: 200 × 200 mm square plate; specimen min. 300 × 300 mm, thickness 0–50 mm (optional 70 mm).
• Climate chamber: 15–55 °C, 30–70% RH; horizontal, uniform airflow.
• Channels: plate/guard/bottom guard temperature, air T/RH/speed, real power.
• Control and report: Windows-based software, independent process control; automatic steady-state detection, Turkish/English report.

Taken from the TexLab Instruments product brochure. Values may vary by options; request the technical datasheet before ordering.
