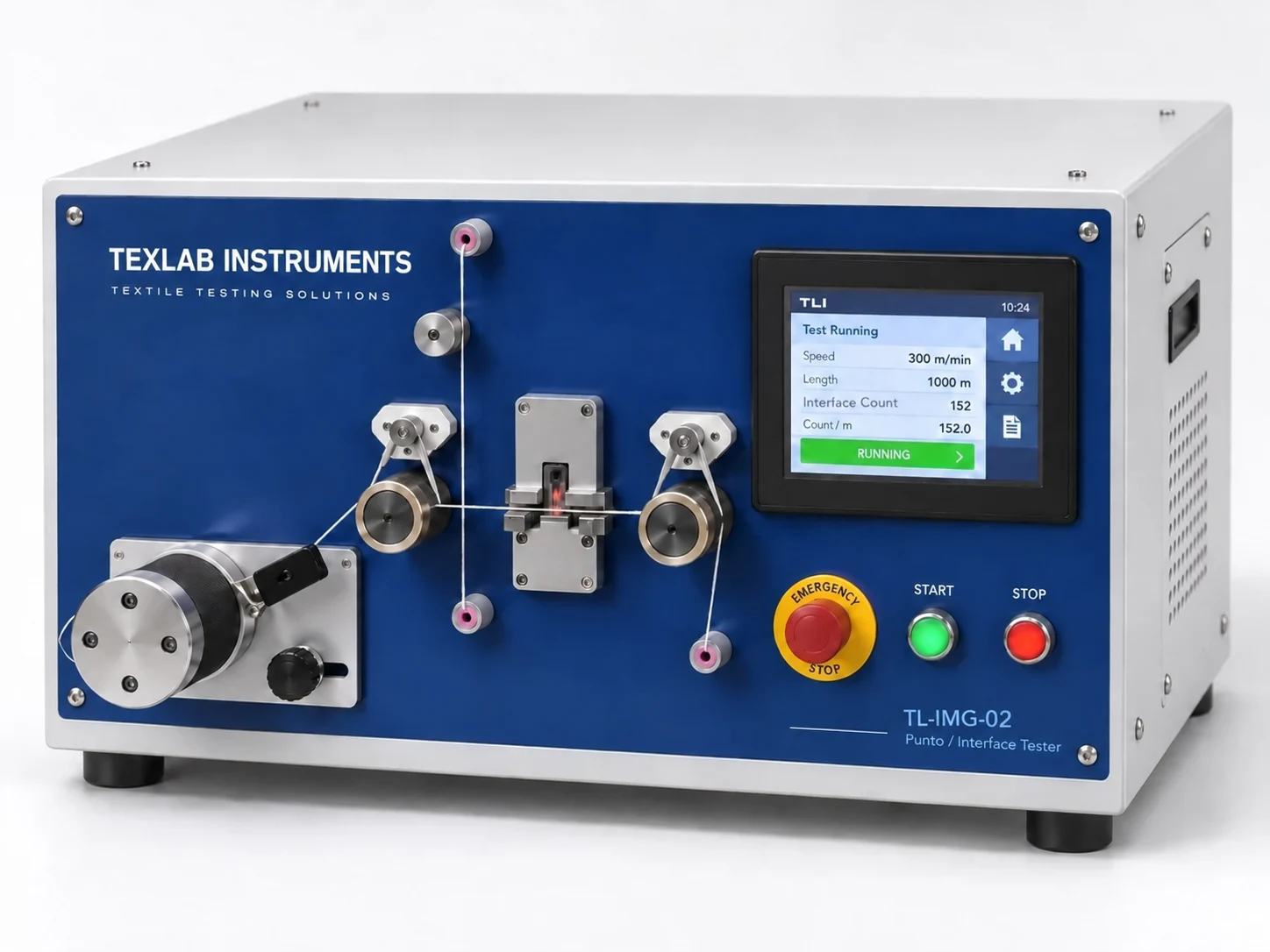

Interlace Count & Stability Tester (TL-IMG-02)

Punto Sayım ve Kalıcılık Test Cihazı (TL-IMG-02)

Interlace (tangle) counting on POY, FDY and DTY filament yarns and evaluation of interlace stability under controlled force or draw ratio. Active pre-tension control, force feedback and stored test recipes.

Technical specifications

• Test modes: interlace counting; stability test at constant force and at constant draw ratio.
• Feeding and drawing: active inlet pre-tension; independently controlled godets and draw zone.
• Force measurement: force feedback in the draw zone; second tension sensor on the measuring side.
• Interlace detection: mechanical thickness scanning for POY/FDY/DTY; optional optical sensor for DTY/BCF.
• Touch-screen HMI: speed, length, interlace count, interlaces per metre, force and draw ratio display.
• Stored test conditions, comparison of reference and after-load results, exportable report.
• Reported results: interlace density before and after loading, applied force, draw ratio, speed, length, pre-tension and detection threshold.
• Protection: yarn break and overload detection; start/stop and emergency stop.

Taken from the TexLab Instruments product catalogue. Values may vary by model and options; request the technical datasheet before ordering.
