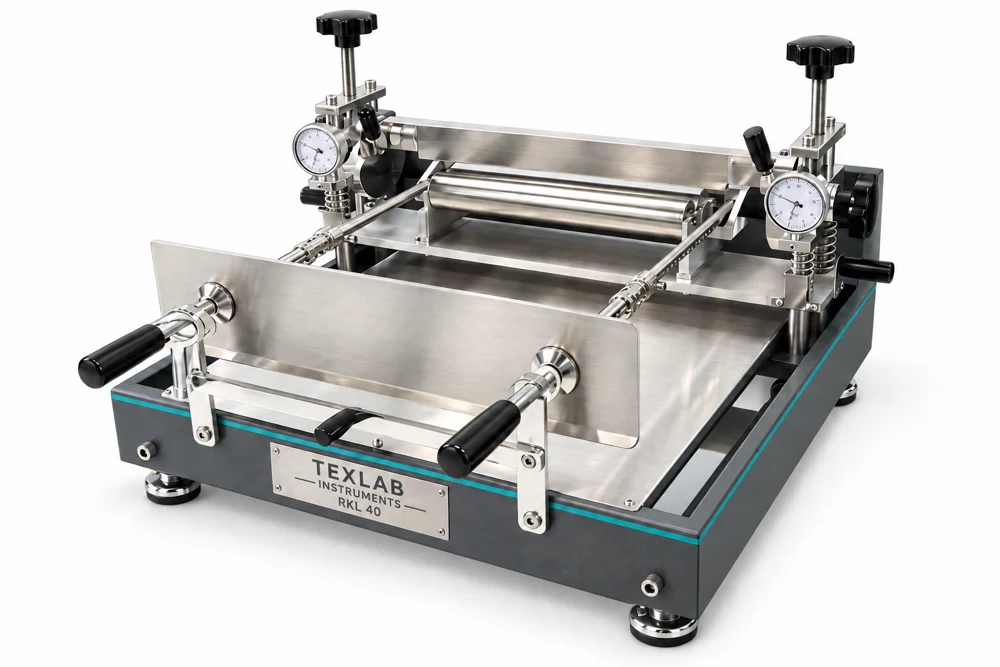

Laboratory Coating Knife (RKL 40)

Laboratuvar Tipi Rakle (RKL 40)

Benchtop laboratory coating knife for film coating of textile and leather samples. Knife-over-roll, between-rolls and in-front-of-roll coating; 300 mm blade, ±30° adjustable blade angle, up to 5 mm coating gap, maximum sample 285 × 340 mm.

Technical specifications

• Maximum sample size: 285 × 340 mm.
• Blade width: 300 mm; blade angle adjustable ±30°.
• Over-roll and between-rolls operation: max. 5 mm.
• Roll diameter: 40 mm (2 pcs).
• Dimensions: 600 × 640 × 355 mm; weight 32 kg.

Taken from the TexLab Instruments product brochure. Values may vary by options; request the technical datasheet before ordering.
